ClimateWins: Predicting Rain & Climate Drift with Machine Learning 🌧️

Project Date: August 2025
Category: Machine Learning & Climate Science
Project Type: Final Project Report

Project Overview

Objective: Identify three distinct applications of machine learning that can transform ClimateWin’s baseline weather dataset into high-leverage insight workflows for weather forecasting and climate change modeling goals.

Three Core Experiments:

1. From Rainfall to Rainfall Risk - Binary target transformation for station-level rain prediction
2. Derived Drift - Climate instability detection using time-aware validation
3. Munich “Proxycraft” - Reconstruction of missing data via proxy modeling

Deliverables:

• GitHub Repo

---

TL;DR

• ClimateWins applied machine learning to European weather data to predict rain as a binary event, while navigating inconsistent measurements.
• Temporal drift revealed shifts in climate patterns that reduced model accuracy—reframing prediction failure as climate signal.
• Missing sensor data was reconstructed using feature-based proxy modeling, significantly boosting accuracy.
• This approach supports robust forecasting even with imperfect data and helps detect signs of climate instability.

Recommendation:
Adopt binary rain risk models enhanced by drift detection and proxy reconstruction to improve forecast reliability and surface early indicators of local climate change.

---

Data Source: European Climate Assessment & Data Set Project (ECA&D)

• Date Range: 1960-2022 (62 years of daily observations)
• Coverage: 18 weather stations across 10 countries (post data cleaning)
• Geographic Scope: Switzerland, Serbia, Austria, Hungary, Spain, Germany, Ireland, Norway, United Kingdom, Sweden, France, Slovenia

FIG. A: Geographic coverage of weather stations after data cleaning, spanning Central and Western Europe.

---

Experiment 1: From Rainfall to Rainfall Risk ☔

Problem Statement

Data Quality Issues:

• Precipitation values inconsistent across stations
• VALENTIA: Single 90mm spike (valid but extreme outlier)
• Other stations: Max ~14mm/day (implausibly low for regional norms)
• No safe scaling possible without significant assumptions

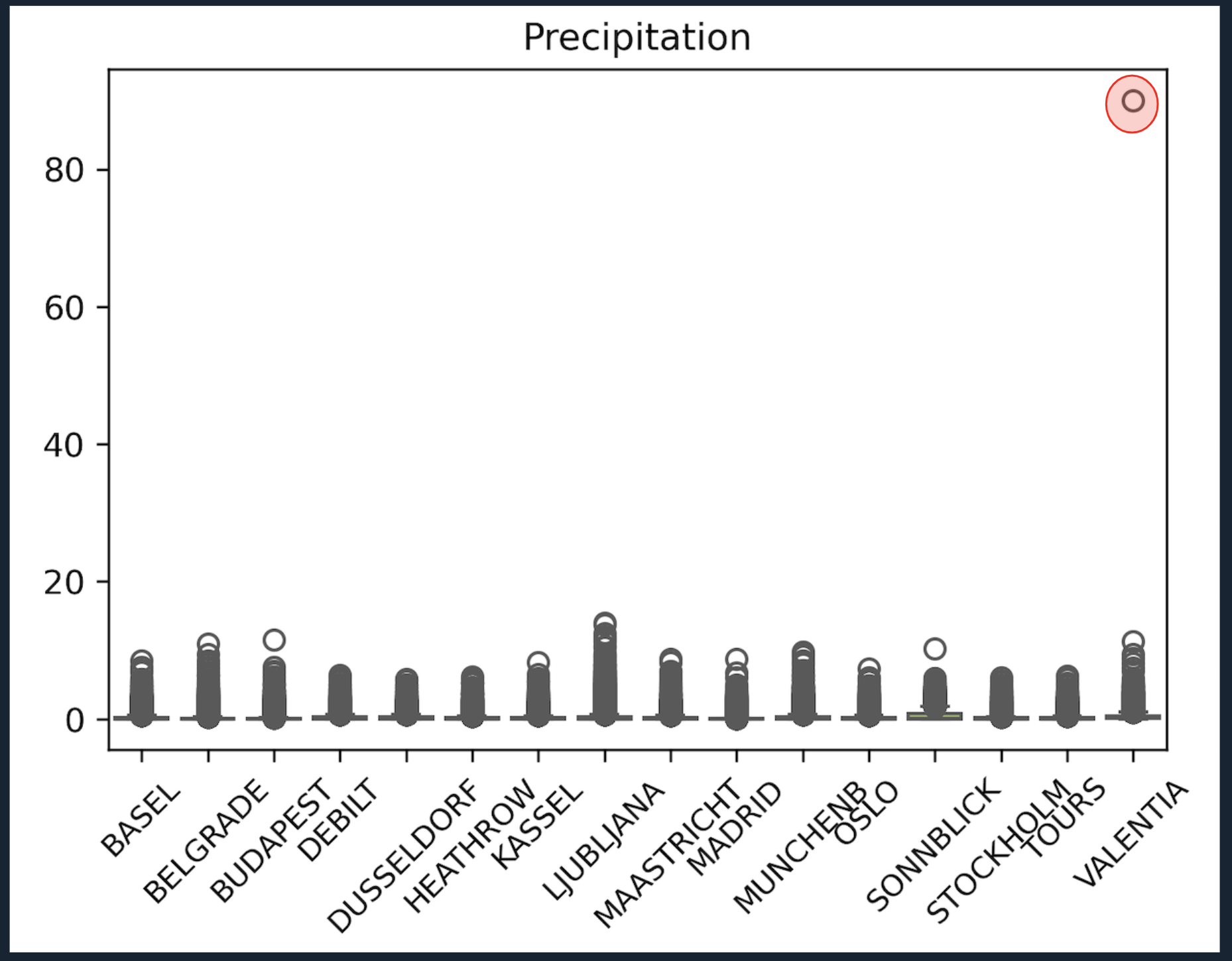

FIG. B: Boxplot showing precipitation distribution per station. The extreme outlier at Valentia is highlighted in red, emphasizing measurement variability.

Solution: Binary Reframing

Approach: Transform precipitation values into a binary target: “Did it rain tomorrow?”

Benefits:

• Simplifies the target to a more reliable signal
• Avoids issues with inconsistent raw measurements
• Supports actionable risk forecasting

Methodology

ML Preparation Decisions:

1. Trimmed date range to 1960–2019 for consistency
2. Retained stations with imperfect data to:
   • Simulate real-world missingness and data quality challenges
   • Test ML’s ability to learn latent proxy patterns
   • Leverage feature correlations to compensate for gaps
   • Validate robustness under incomplete data conditions

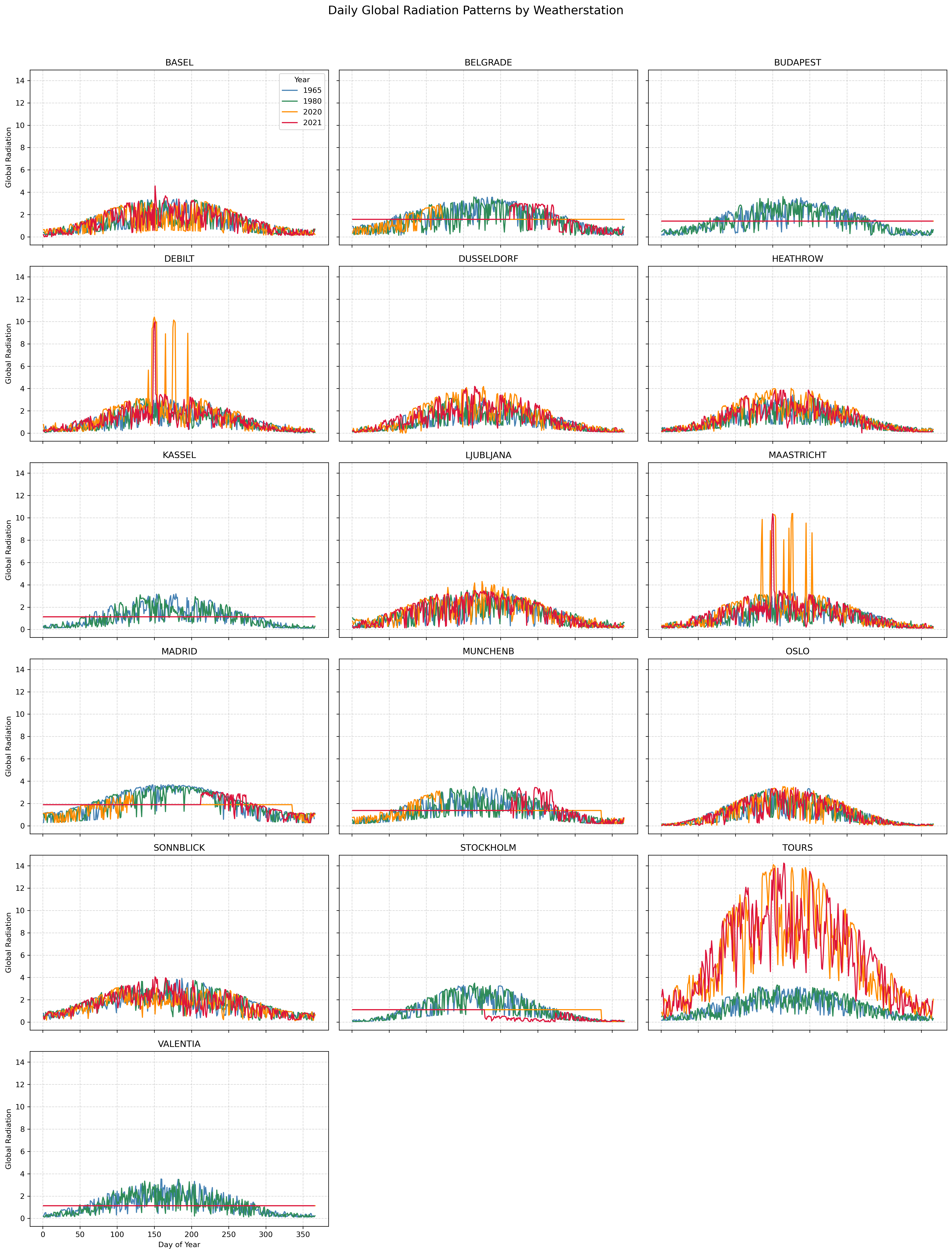

FIG. C: Daily global radiation values by station for selected years. From 2020 onwards, many stations show anomalous constant or differently scaled values, prompting truncation of data before 2020.

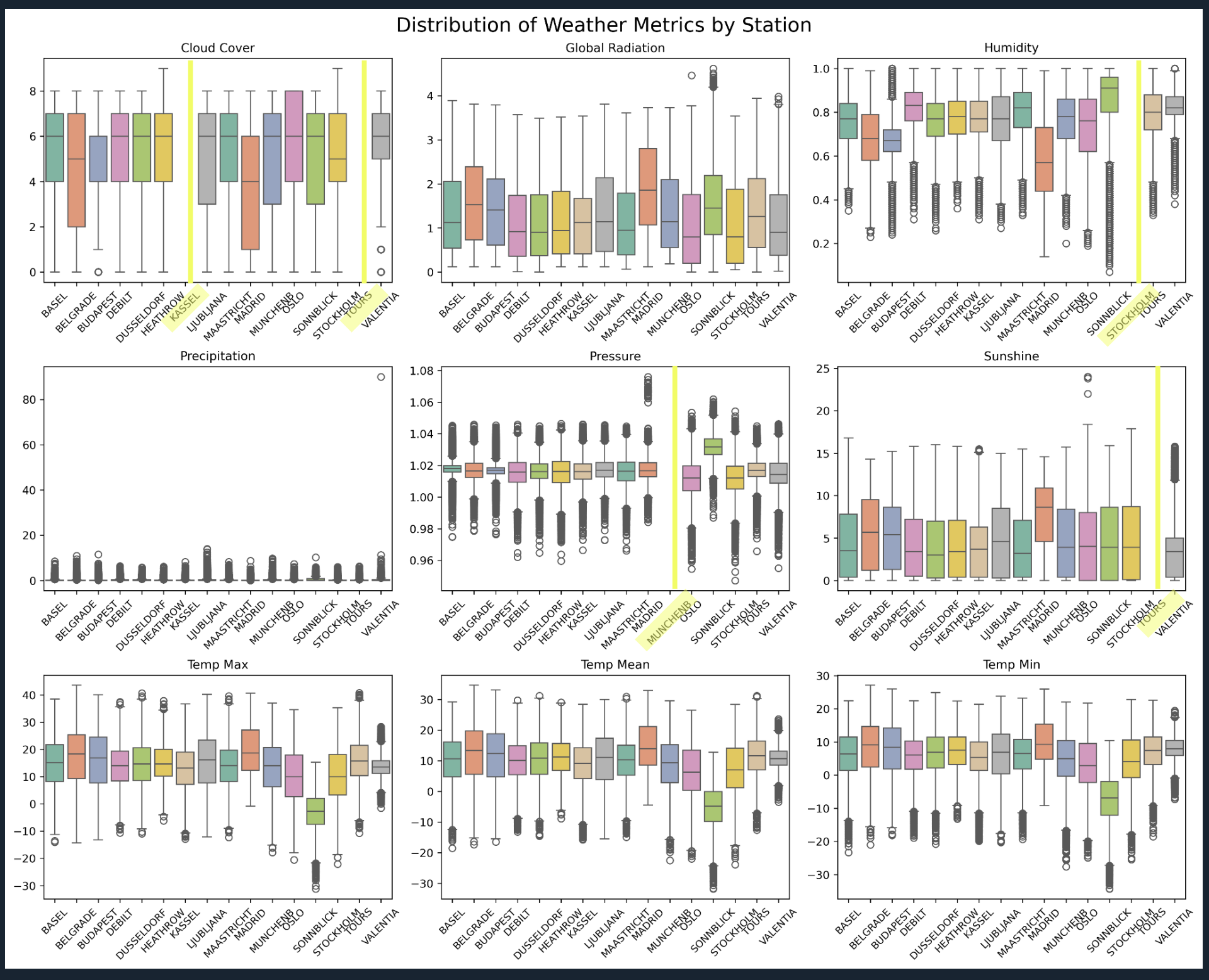

FIG. D: Boxplots of variances for various weather metrics per station. Stations missing key values are highlighted in yellow, yet remaining features provide useful signals for ML.

Results: Feature Importance Analysis

Random Forest models with randomized search optimization were trained per station, using time-aware splits to prevent leakage.

Key Findings:

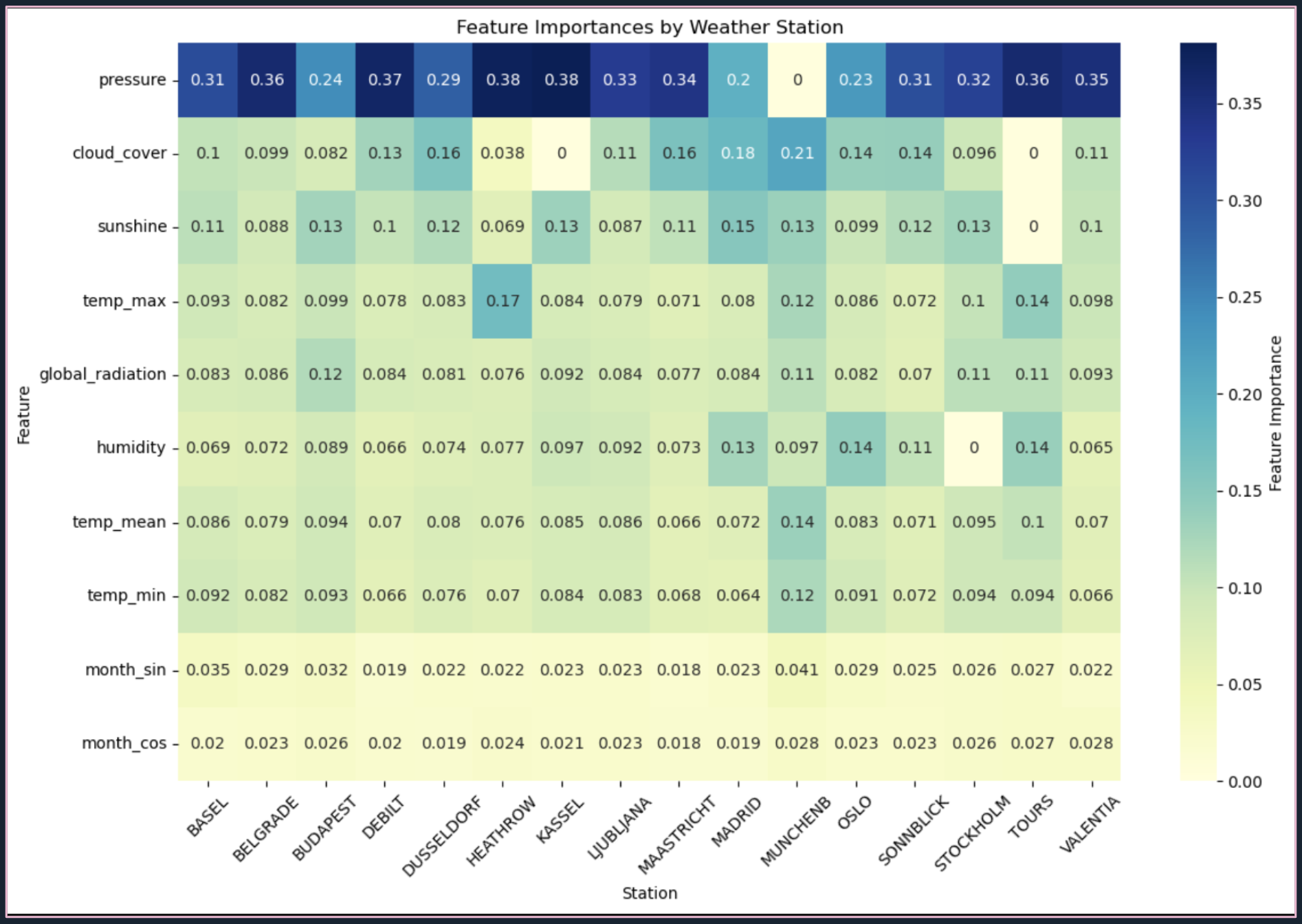

FIG. E: Feature importance results from station-specific Random Forests, showing dominant predictors and variation across stations.

• Air Pressure: Top predictor at most stations
• Local Variability: Feature importance patterns vary reflecting local conditions
• Coefficient of Variation: Importance weights between 0.56–1.07 depending on station

Adaptive Behavior:

• Kassel: Missing cloud cover compensated by sunshine data
• Tours: Lacking cloud cover and sunshine, depends on max temperature and humidity

Performance Overview

Results: Macro F1 score approximately 0.65 with narrow interquartile range

Insights:

• Consistent performance despite input inconsistencies
• Outliers:
  • MUNCHENB performed poorly, likely due to missing pressure data
  • BUDAPEST showed poor results, despite complete features

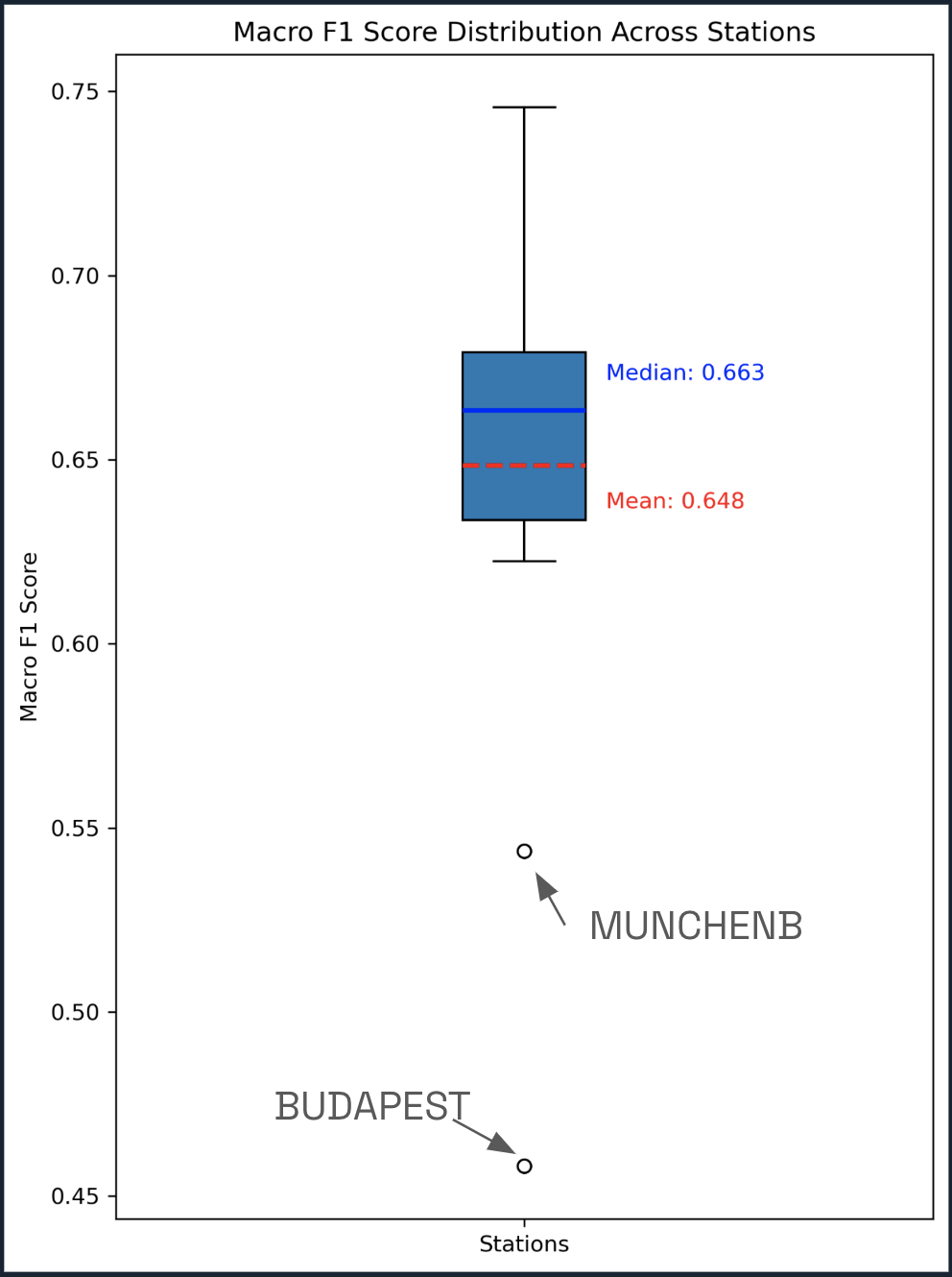

FIG. F: Boxplot of Macro F1 scores per station demonstrating consistent predictive performance with some outliers.

Conclusion: Station-specific models can handle heterogeneous data; ML successfully predicts rain likelihood despite noisy inputs.

---

Experiment 2: Derived Drift 📈

Motivation

BUDAPEST’s poor model performance prompted exploration of potential climate drift affecting predictability.

Step 1: Distribution Check

Method: Analysis of rainy day counts to evaluate class balance and detect distributional shifts.

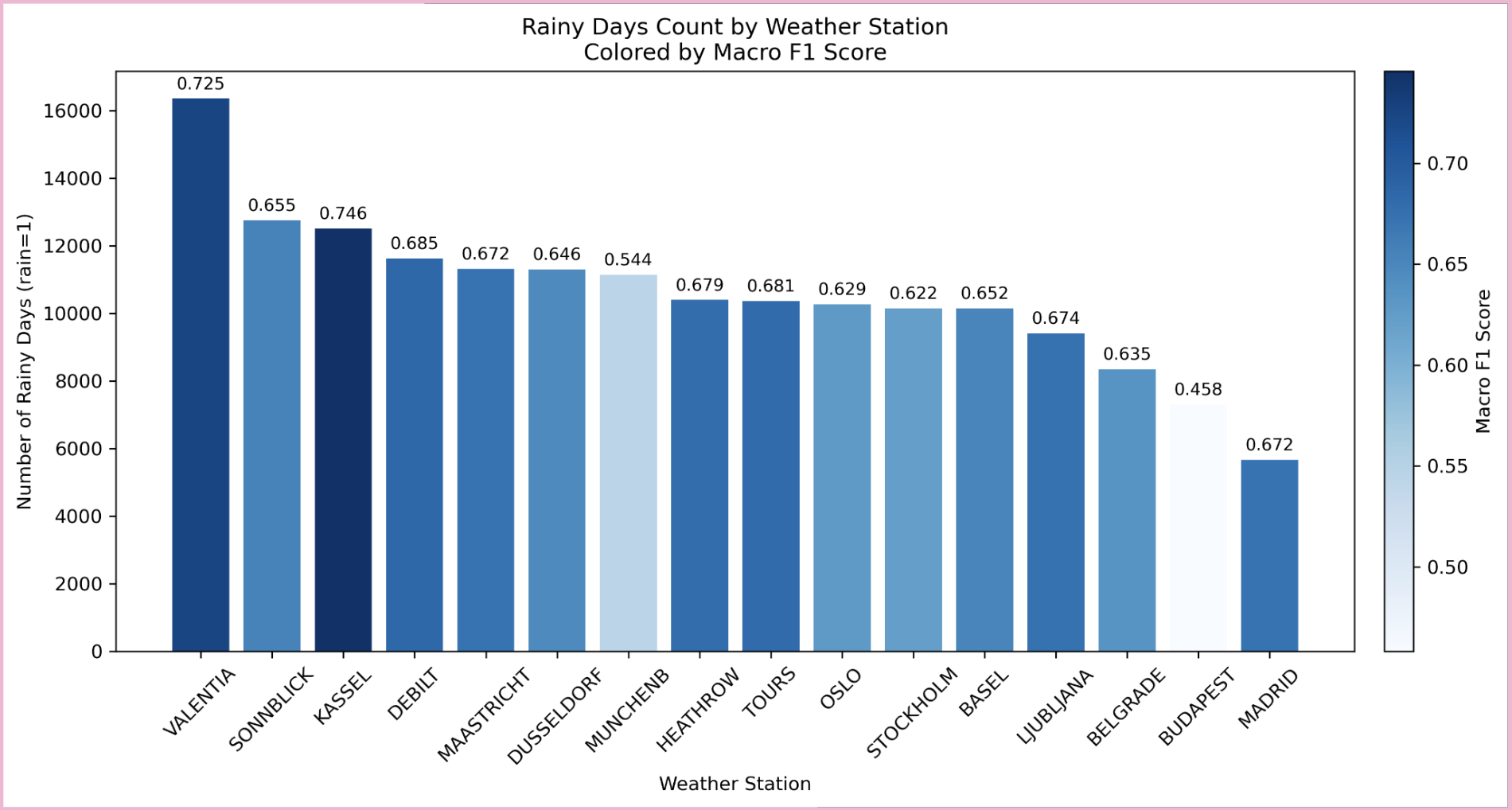

FIG. G: Stations ranked by rainy day counts (bars) and colored by Macro F1 score, showing correlation between rain frequency and model accuracy.

Findings:

• VALENTIA and KASSEL: High rain counts and strong model scores
• MADRID: Lowest rain count but unexpectedly strong performance due to class imbalance effects
• SONNBLICK: High rain count but average F1
• BUDAPEST: Low rain with lowest Macro F1, suggesting alternate failure cause

Step 2: Temporal Distribution Analysis

Results:

• KASSEL & VALENTIA test sets exhibit spikes with months having >28 rainy days, absent from training sets
• SONNBLICK’s training and test rain distributions remained aligned

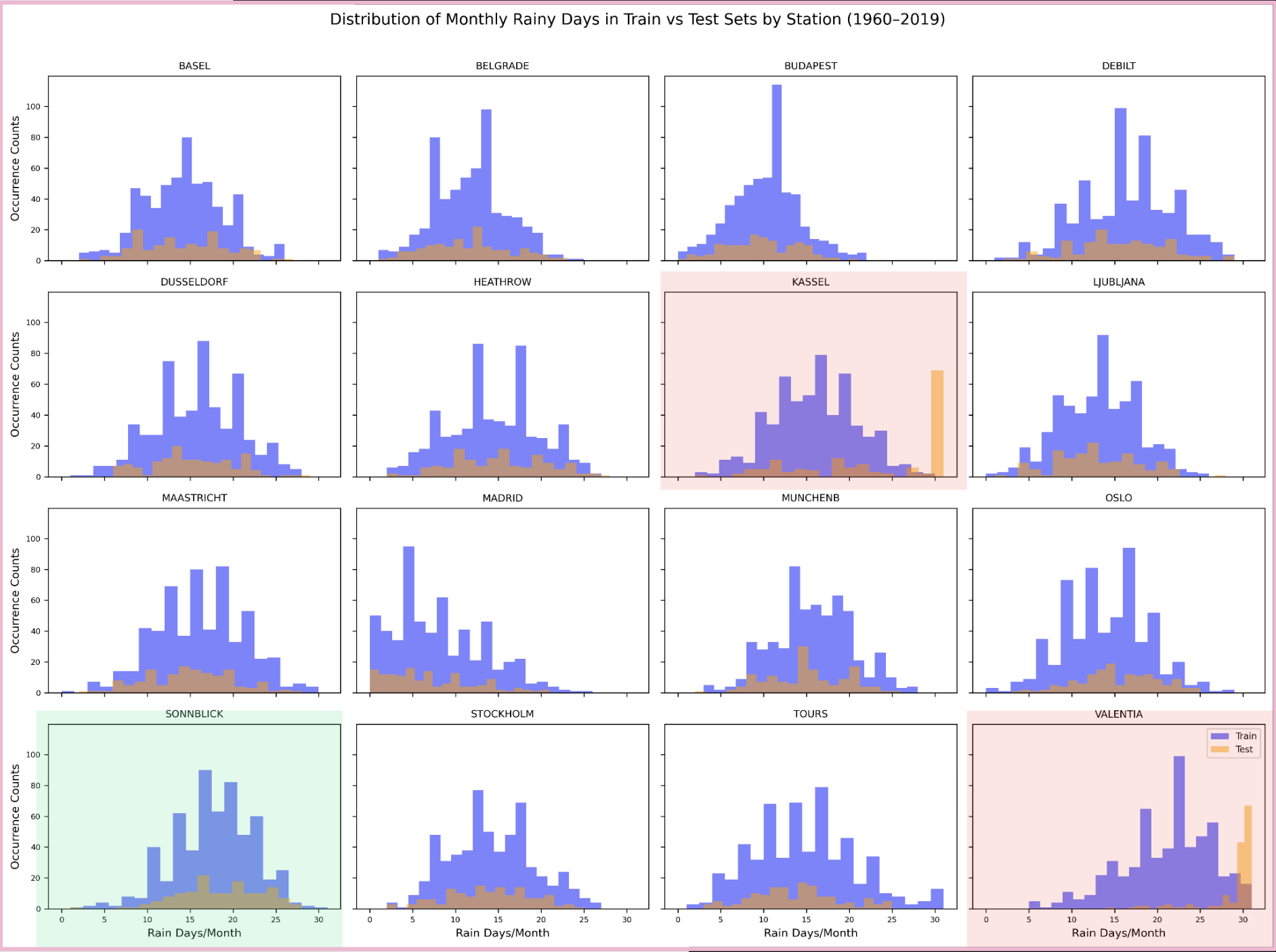

FIG. H: Rain day count distribution for train vs. test, highlighting drift for KASSEL and VALENTIA (red) compared with stable SONNBLICK (green).

BUDAPEST insight: Training period concentrated around 12–13 days rain/month spike disappears in test (2007–2019), suggesting climate drift.

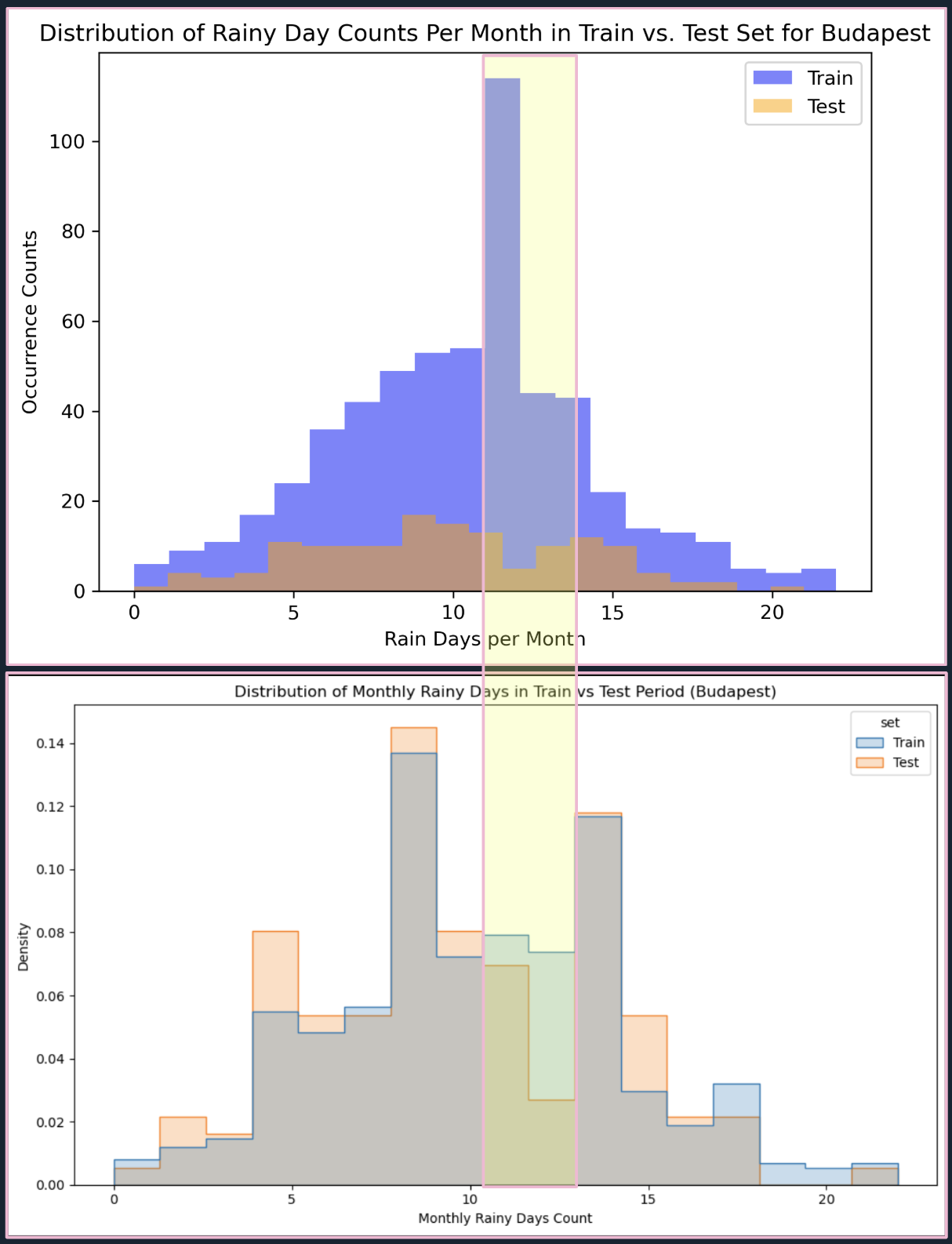

FIG. I: Rainy day counts for Budapest showing sharp decline in 10-13 rainy days/month in holdout test set (top: raw counts; bottom: normalized density).

Step 3: Smoothed Predictor Testing

Method: Applied rolling averages and momentum features to smooth predictors and test sensitivity to drift.

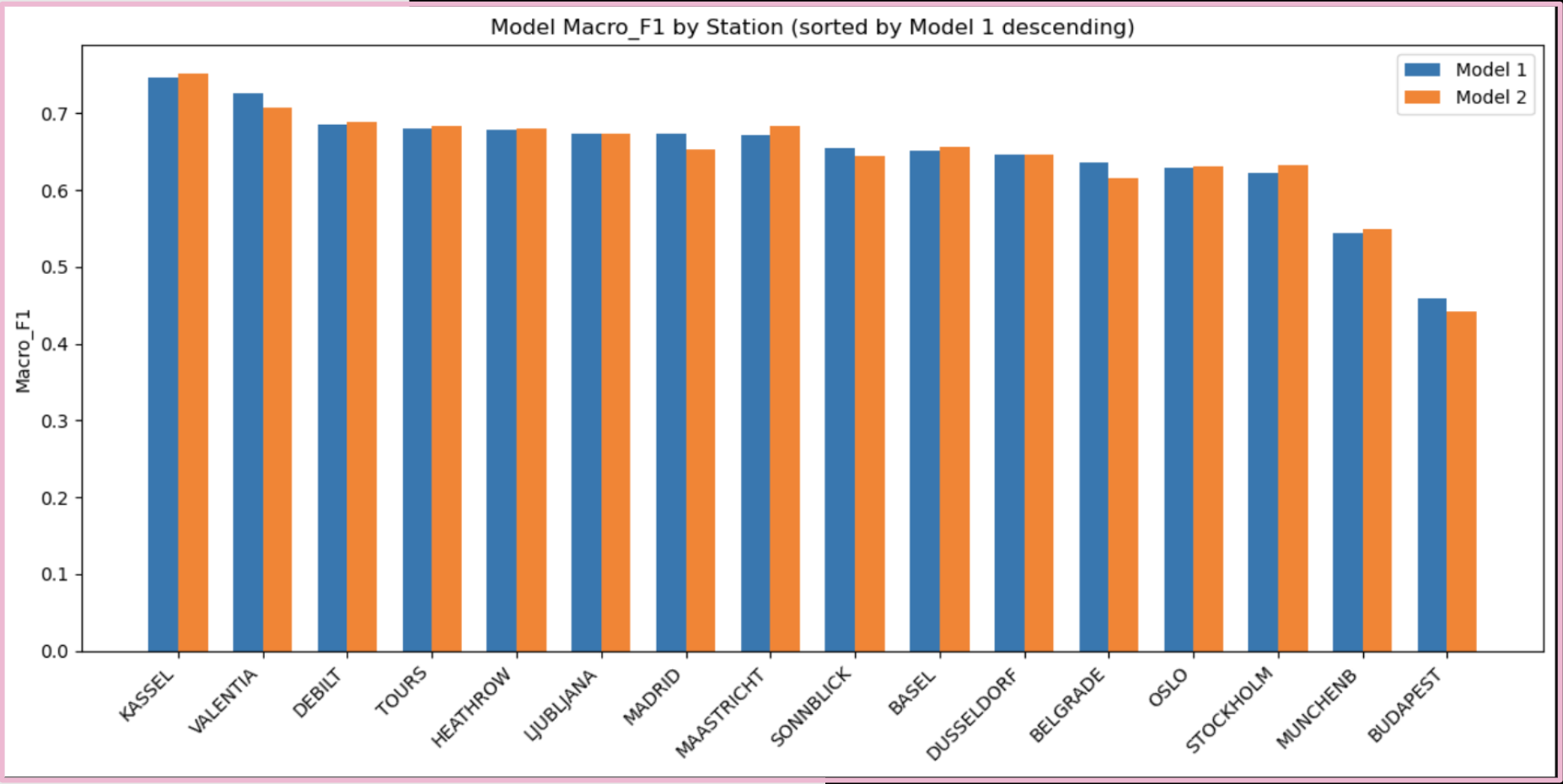

FIG. J: Station performance comparison between baseline model (model 1) and smoothed model (model 2). Minor changes noted, with slight accuracy improvement from 65.2% to 65.7%.

Step 4: Limitations & Future Directions

Current Limitations:

• K-Means clustering failed to reveal clear regional climate drift groups
• Rain rate delta as proxy misses seasonality and meteorological context
• Madrid example shows smoothing may obscure edge signals

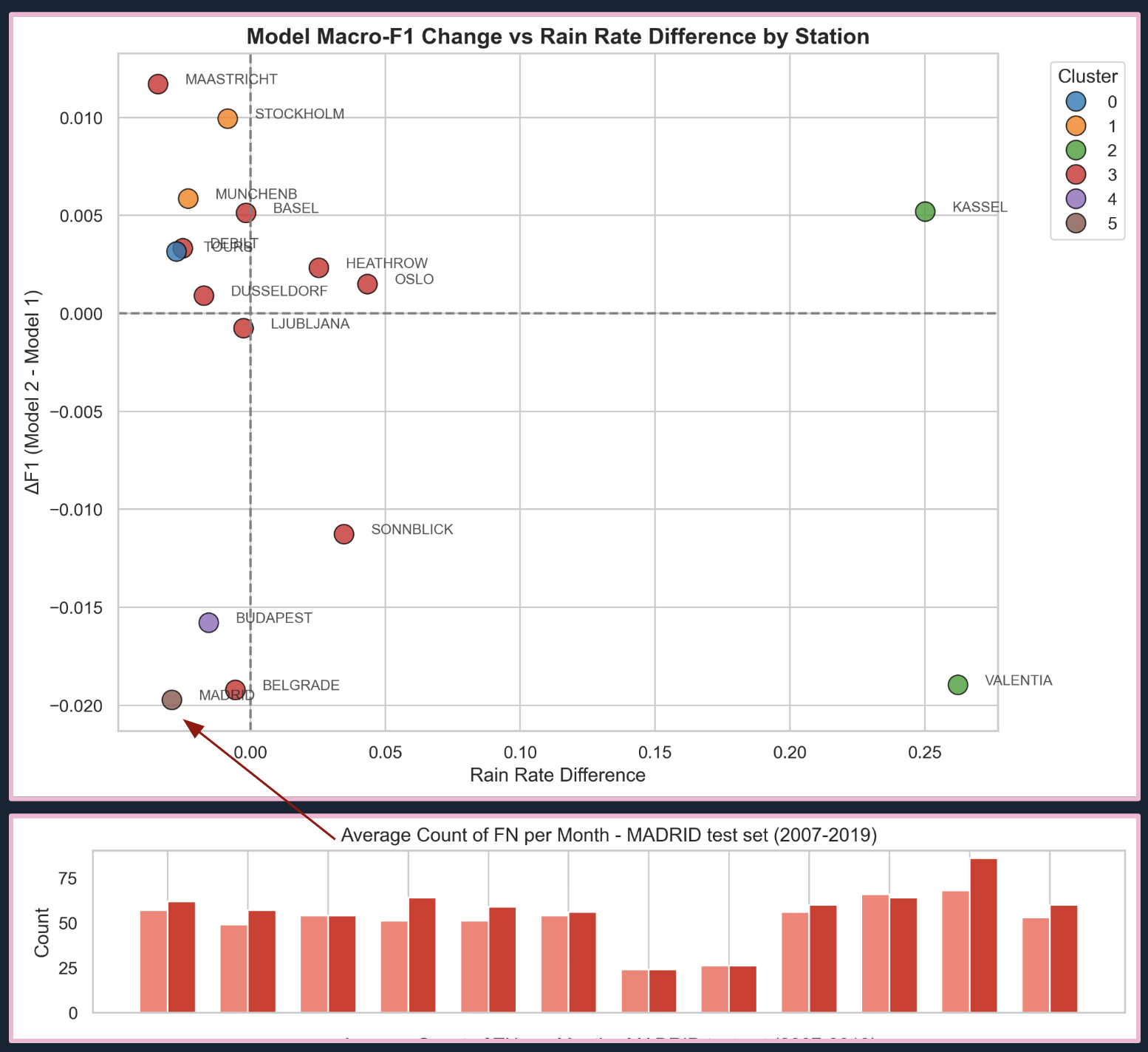

FIG. K: K-Means clustering results show no discernible climate drift groups. Zoom into Madrid’s false negatives reveals increased missed rainy days when using smoothed predictors.

Next Steps:

• Monitor probabilistic prediction residuals for drift
• Use unsupervised methods (e.g., Isolation Forest) on feature spaces
• Develop multi-factor drift indices for better sensitivity

---

Experiment 3: Munich “Proxycraft” 🔧

Problem

Munich station severely underperformed (Macro F1: 54.4%) due to missing pressure readings—the globally most important rain predictor.

Solution: Feature-Based Proxy Modeling

Approach:

1. Trained nonlinear regression model on stations with full features
2. Learned relationships to predict pressure from available data
3. Synthesized pressure values for Munich
4. Re-ran Random Forest model with reconstructed pressure

Results

Performance Improvement:

• Before proxy modeling: Macro F1 = 54.4%
• After proxy modeling: Macro F1 = 63.6%
• Munich’s performance lined up with global average

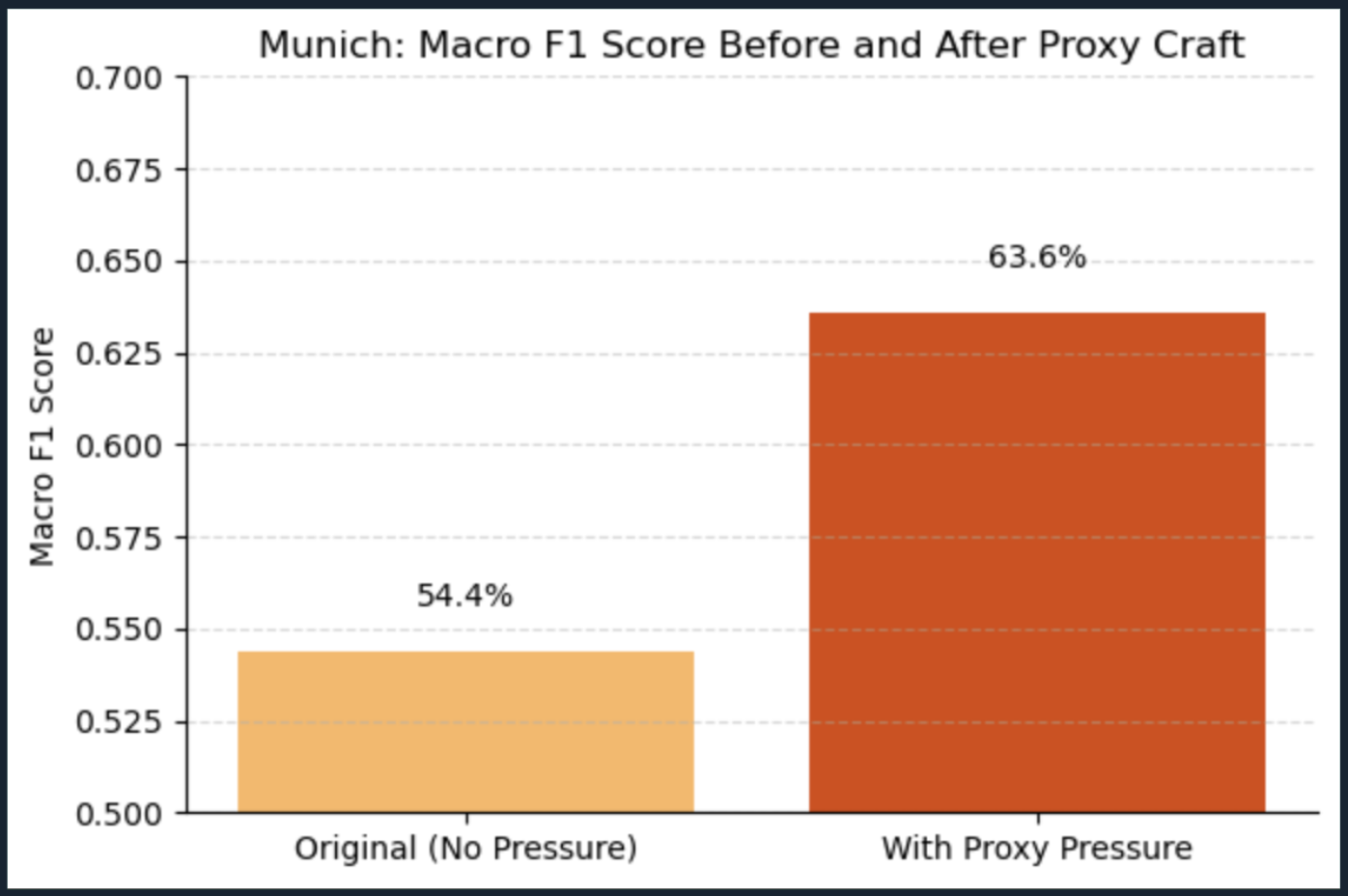

FIG. L: Performance improvement for Munich after proxy modeling of pressure, highlighting substantial F1 score gain.

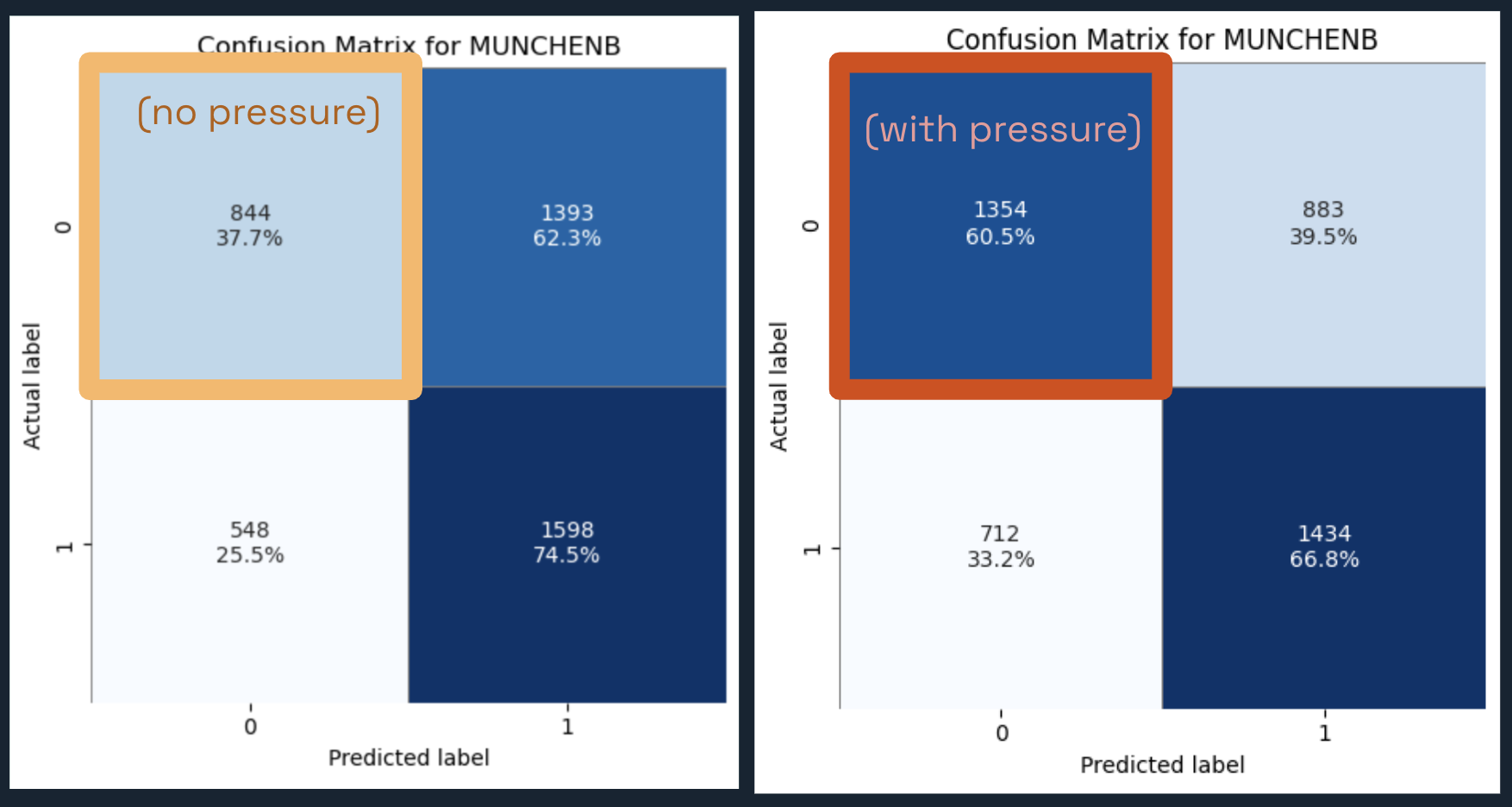

FIG. M: Confusion matrix comparison shows Munich’s True Negative rate improvement from 37.7% to 60.5%. True Positives dip slightly but reflect better class separation.

Key Insight: Feature-based proxy modeling outperforms geographic clustering for missing sensor data reconstruction.

---

Technical Innovations

1. Binary Target Transformation

Converting messy precipitation measures to reliable binary rain risk predictions for robust modeling.

2. Climate Drift Detection Framework

Using time-aware validation and derived features to detect temporal shifts as climate signals rather than errors.

3. Meteorological Proxy Modeling

Learning meteorological relationships to reconstruct missing data with improved scientific validity and scalability.

---

Final Recommendations

🌍 1. From Rainfall to Rainfall Risk

Employ binary station-level models to predict rain occurrence, not volume — enabling robust, localized risk forecasts despite measurement inconsistency.

🌍 2. Detecting Drift, Not Just Decay

• Use derived features with time-aware validation to reveal instability
• Create multi-factor drift indices and unsupervised detectors to identify shifting climate signals
• Key Insight: Model deterioration may flag fastest-changing climates, guiding data collection and intervention prioritization.

🌍 3. Proxy with Purpose

• Use feature-based proxy modeling instead of geographic assumptions for missing data reconstruction
• Favor meteorological relationships, particularly for critical variables like pressure
• Scalable to other sensor gaps and variable reconstructions

---

Strategic Impact for ClimateWins

Operational Advantages:

• Risk-based forecasts more actionable than raw precipitation estimates
• Models robust to imperfect legacy datasets
• Systematic missing data reconstruction pipeline
• Climate signal detection from model drift insights

Future Applications:

• Early warning systems for extreme weather events
• Regional climate monitoring and targeted interventions
• Sensor network design optimized by proxy model performance
• Long-term climate trend validation through drift detection

---

Tools Used: Python, Random Forest, Feature Engineering, Time Series Analysis, Proxy Modeling
Skills Demonstrated: Advanced ML pipeline design, climate data science, missing data imputation, temporal validation, scientific problem reframing
